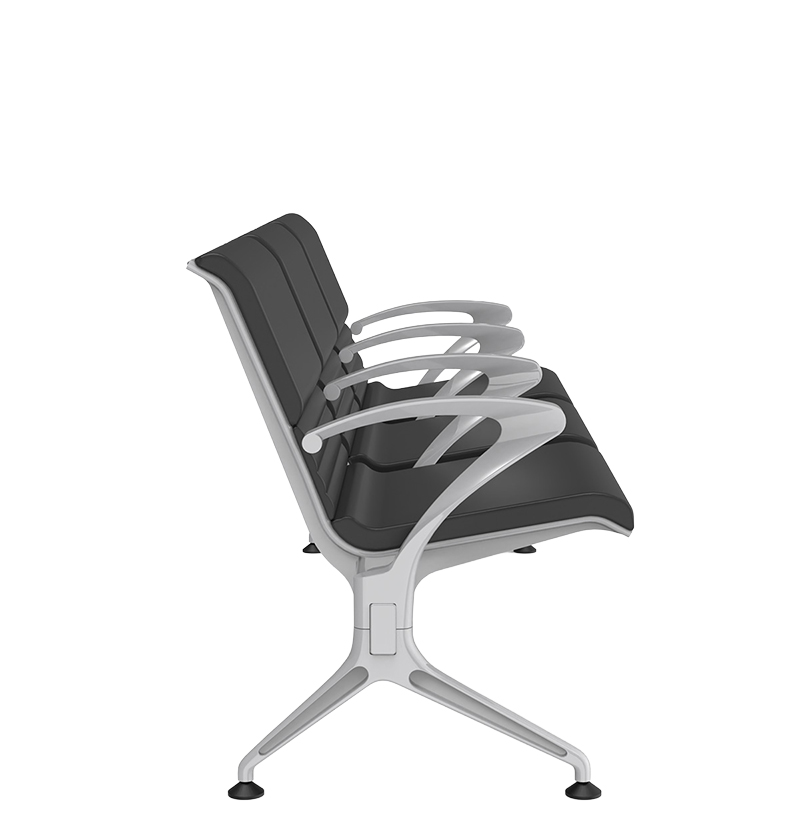

Union Beam
- Applications:
- Waiting Rooms | Conference Rooms | Training Room
- Models:
- 517-2 - Two-Position Beam
- 517-3 - Three-Position Beam
- 517-4 - Four-Position Beam
- 517-5 - Five-Position Beam
- S - Steel Plated | F - Fully Upholstered
Details
Features
Design is ideal for airports, train and bus stations as well as public waiting areas.
Available as a two, three, four and five seat beam.

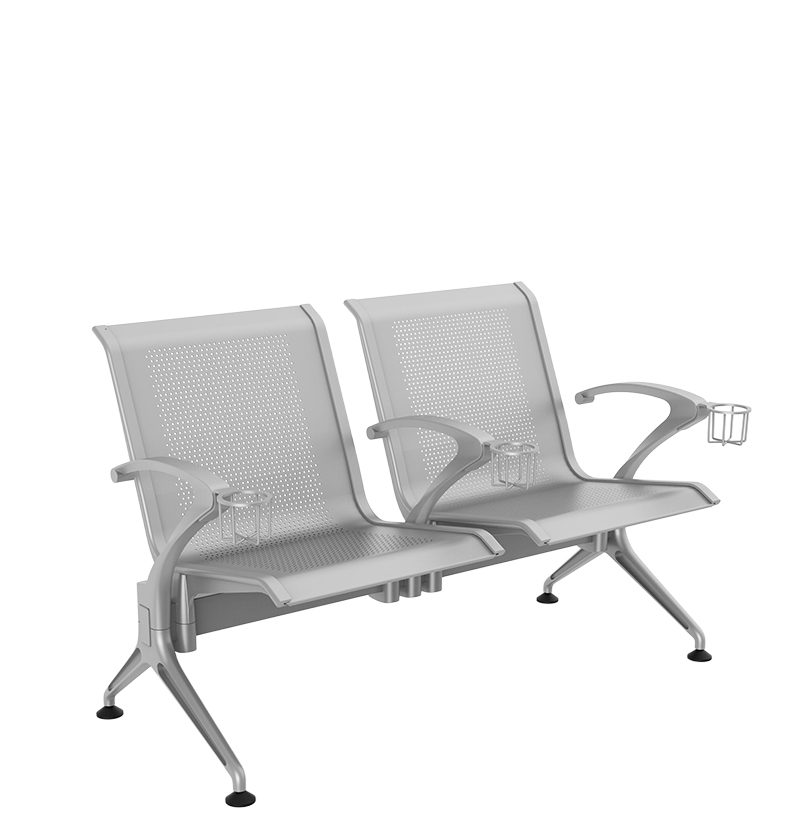

Seat and back are made of high quality cold-rolled perforated 12 gauge steel 1/8” (2.5 mm) thick.
Armrest and legs are made of die cast aluminum.
The rectangular beam is 1.5 x 3” (40x80 mm) with a wall thickness of 3/8” (2 mm).
All steel components are epoxy powder coated in Silver Gray finish.
Meets or exceeds safety and performance standards of ANSI/BIFMA x 5.4.
The Union Beam has been analyzed and approved for structural integrity.
Options

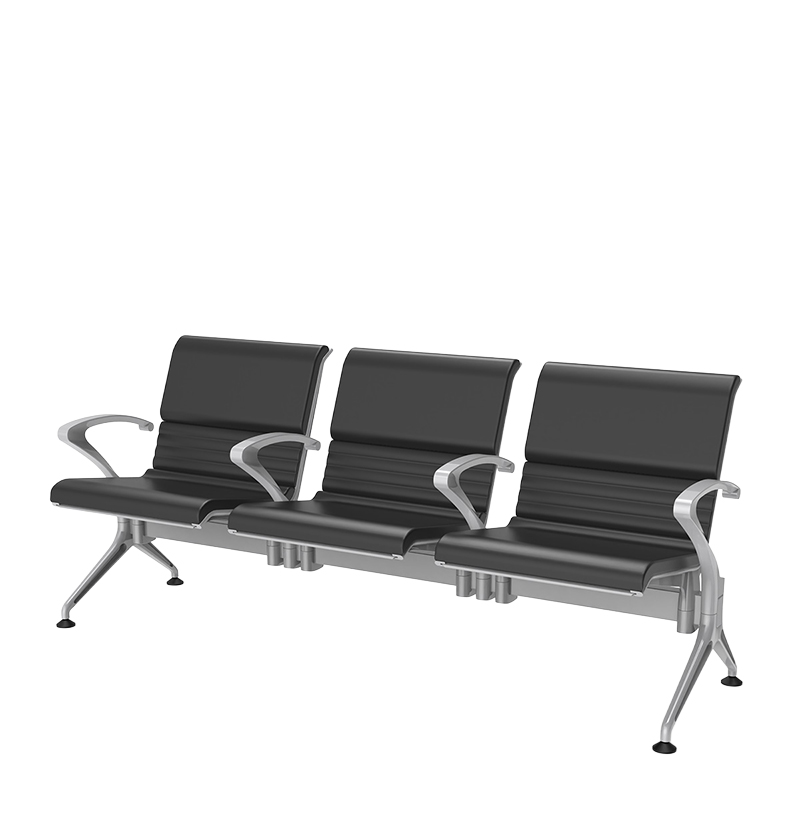

Upholstered (-U) seat and back versions feature a padded seat with high-density, CFC free polyurethane foam.
Custom glides for fastening beam securely to the floor (set of two) Part #517GF.
Individual die cast aluminum armrest can be installed in any position, on ends or between seats. Part #517A.
Metal connector to connect beams back-to-back. Part #517CB.
Table tops (attached to the beam) in Borgo standard laminate 21.5 X 21.5” (545 x 545 mm).

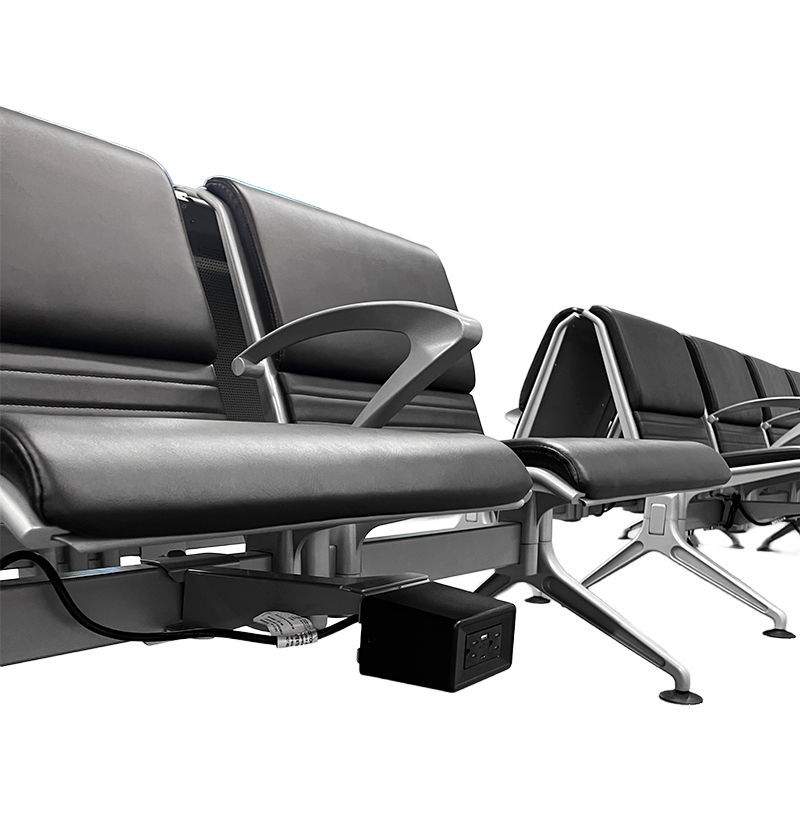

Power and USB outlets.
Knock down (K/D) shipping option.
Downloads
Dimensions
Beam Seating (2 Seats)
| Height | Width | Depth | |
| Overall | 31.5" (800 mm) | 53” (1345 mm) | 26.5" (675 mm) |
| Seat | 16.5" (420 mm) | 21.75” (550 mm) / per seat | 18.5" (470 mm) |
Beam Seating (3 Seats)
| Height | Width | Depth | |
| Overall | 31.5" (800 mm) | 72.5” (1845 mm) | | 26.5" (675 mm) |
| Seat | 16.5" (420 mm) | 21.75" (550 mm) | 18.5" (470 mm) |
Beam Seating (4 Seats)
| Height | Width | Depth | |
| Overall | 31.5" (800 mm) | 94.25" (2395 mm) | 26.5" (675 mm) |
| Seat | 16.5" (420 mm) | 21.75" (550 mm) | 18.5" (470 mm) |
Beam Seating (5 Seats)
| Height | Width | Depth | |
| Overall | 31.5" (800 mm) | 116" (2945 mm) | 26.5" (675 mm) |
| Seat | 16.5" (420 mm) | 21.75" (550 mm) | 18.5" (470 mm) |
