Borgo - Product Page - Stylos

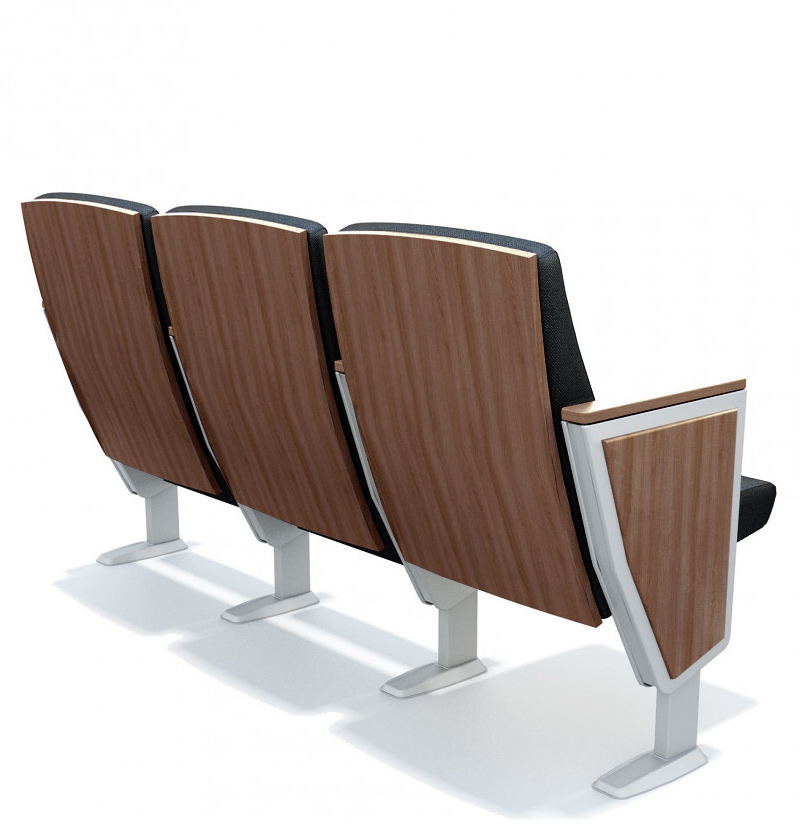

Stylos

Stylos

A TIMELESS DESIGN:: The Stylos’ ergonomic design in the contoured seat and back allow for optimal comfort. The sleek streamlined leg design is timeless and offers both beauty and elegance for years of reliable use.


Applications:
Theaters | Auditoriums | Lecture Halls | Conference Rooms

  • Stylos

  • Stylos

  • Stylos

  • Stylos

  • Stylos

  • Stylos



Details

Models

17810
Standard (Center-to-Center 20.5" (520 mm))
“Soft-Touch” poly arm rests, with polypropylene lower back protector. Fully upholstered back and seat and end arm panels. Inside arm panels in Gray polypropylene.


17820
Comfort (Center-to-Center 21.75" (550 mm))
“Soft-Touch” poly arm rests, with polypropylene lower back protector. Fully upholstered back and seat and end arm panels. Inside arm panels in Gray polypropylene.


17830
Bariatric (Center-to-Center 26.75" (680 mm))
“Soft-Touch” poly arm rests, with polypropylene lower back protector. Fully upholstered back and seat and end arm panels. Inside arm panels in Gray polypropylene. Black polypropylene arm cap and lower back protector in Gray polypropylene.

Features

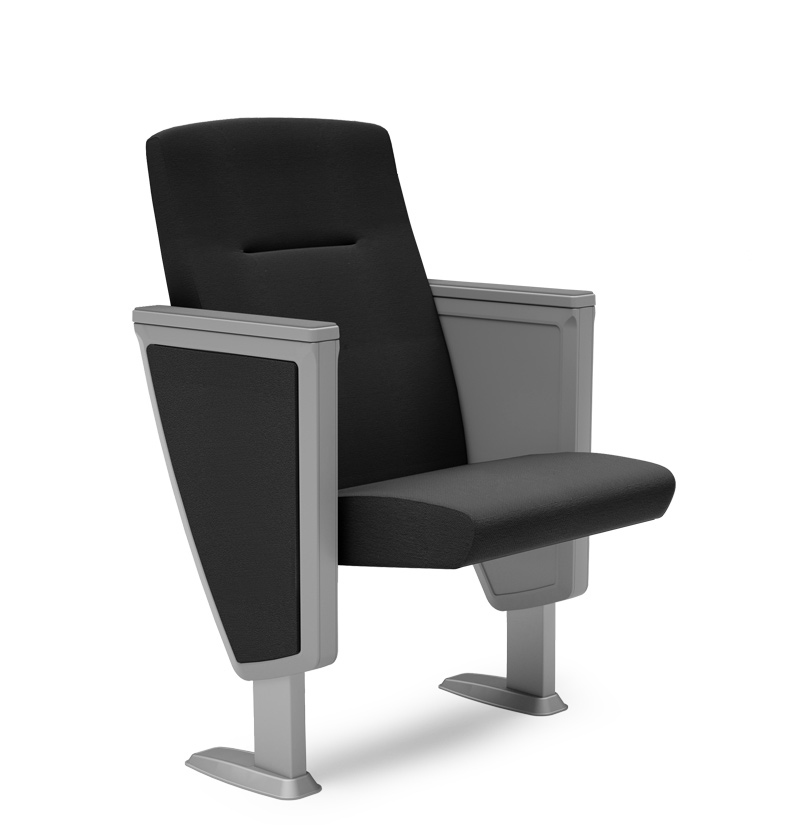

Fixed seating chair with full end and middle arms.


Available joined, individual seats or as a beam.

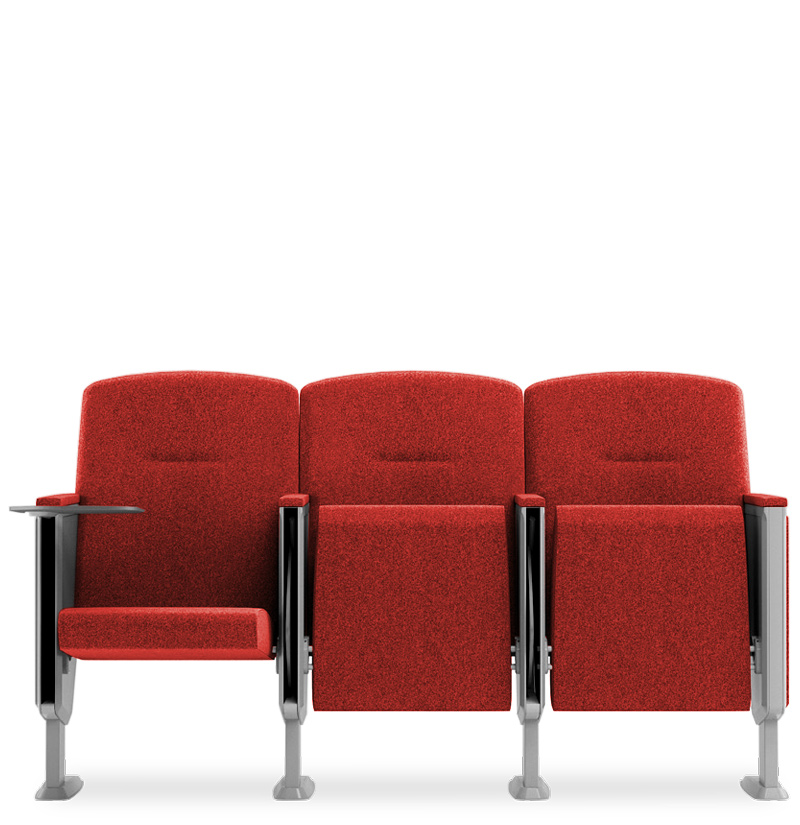

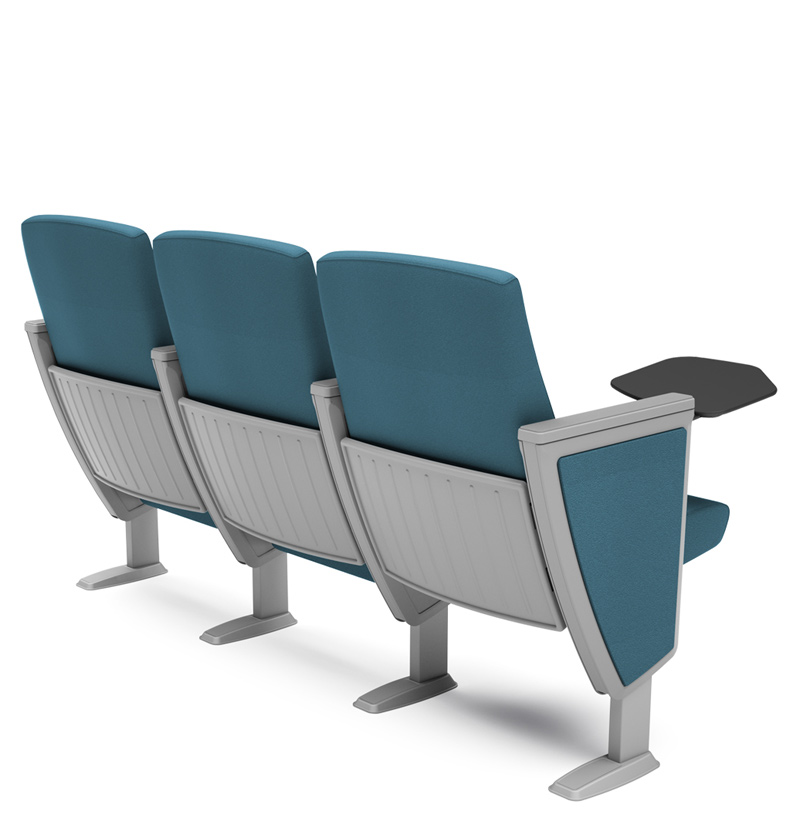

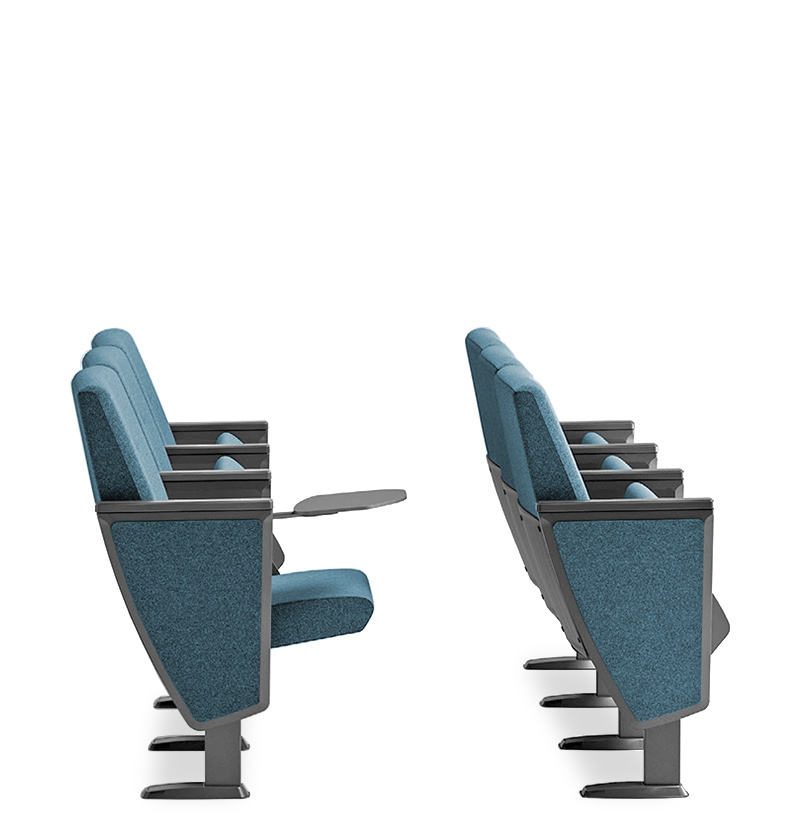

The true Anti-Panic Writing Tablet – folds away effortlessly into the arm, affording for clear aisles, for easy access in case of emergencies. When not in use the tablet is concealed in the arm, for a clean aesthetic and out of harm’s way.


The true Anti-Panic writing tablet has rounded edges and is 10.25” x 10.75” (260 mm x 275 mm).


Seat and backrest have internal support of beech plywood, with CFC-free, high-density, high-resiliency polyurethane foam.


When unoccupied, seats tip up automatically through a gravity/counterweight system.


Armrest available in polypropylene, upholstered or beech wood.


Legs are made of tubular steel 3.5” x 1.18” (90 mm x 30 mm), with seat connection plate and rotation pins made from steel.


Feet are made of stamped sheet metal, anchored to the floor, with a thermoplastic guard concealing foot anchors.


Beam versions two to three seats, are support by a tubular steel beam 3.15” x 1.57” (80 mm x 40 mm).


Metal parts are all epoxy-polyester powder coated.


Upholstered side panel is made of thermoplastic.


Its versatile design allows for installation on a straight row or on a curve, a flat or sloped floor and on steps.

Options

Part #17800-TABLT — Writing Tablet in Black HPL that folds away.


Part #17800-FUA — Flip-Up Arm with Black Poly Arm Cap.

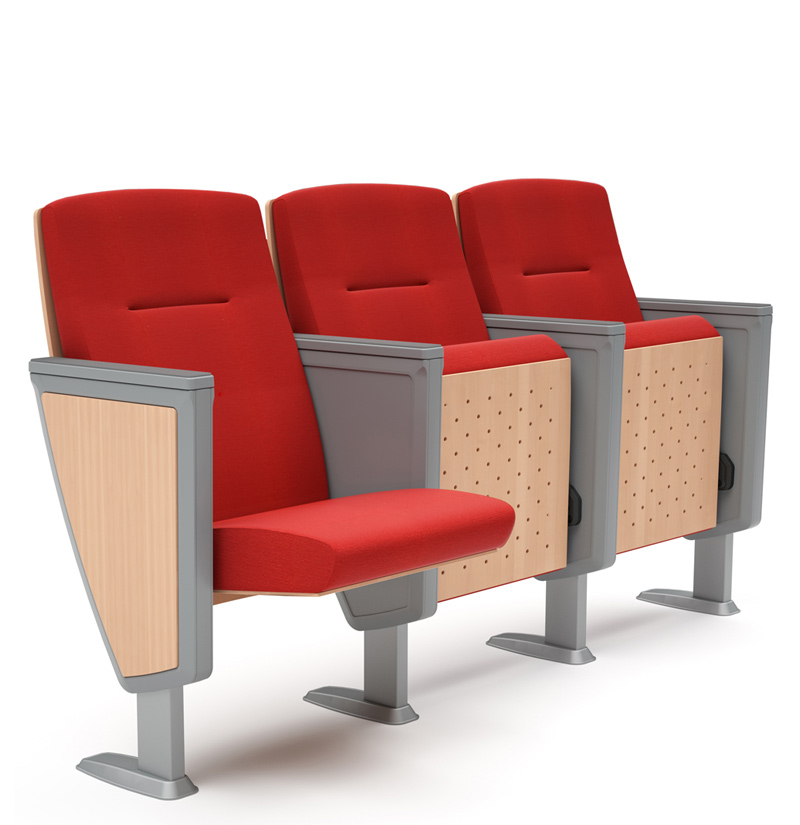

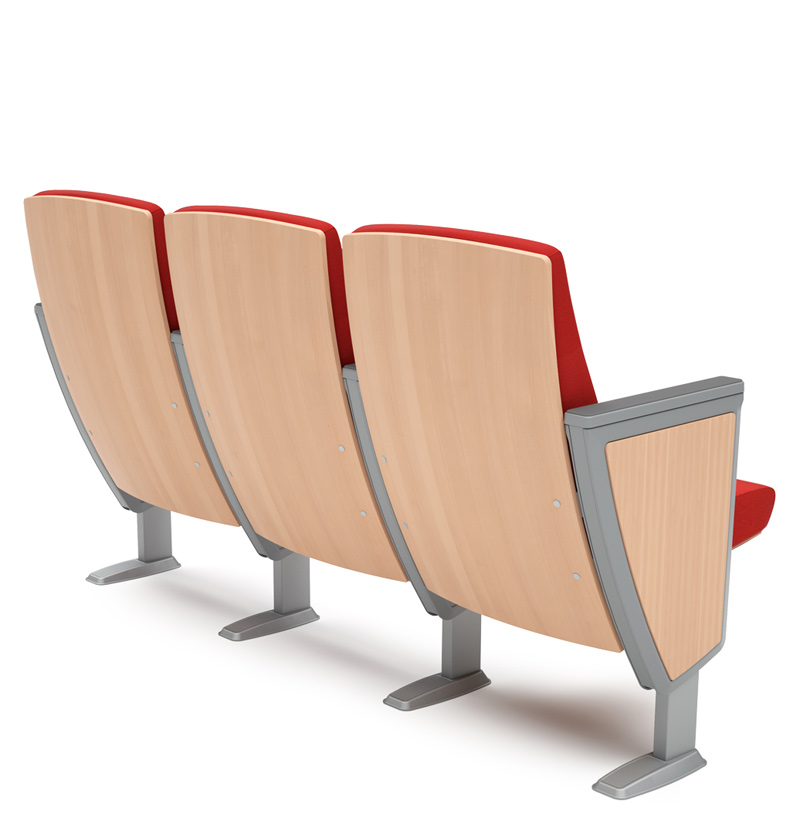

Part #17800-WOB — Wood Outside Back.


Part #17800-WUS — Wood Underseat.


Part #17800-EPW — End Panel in Wood.

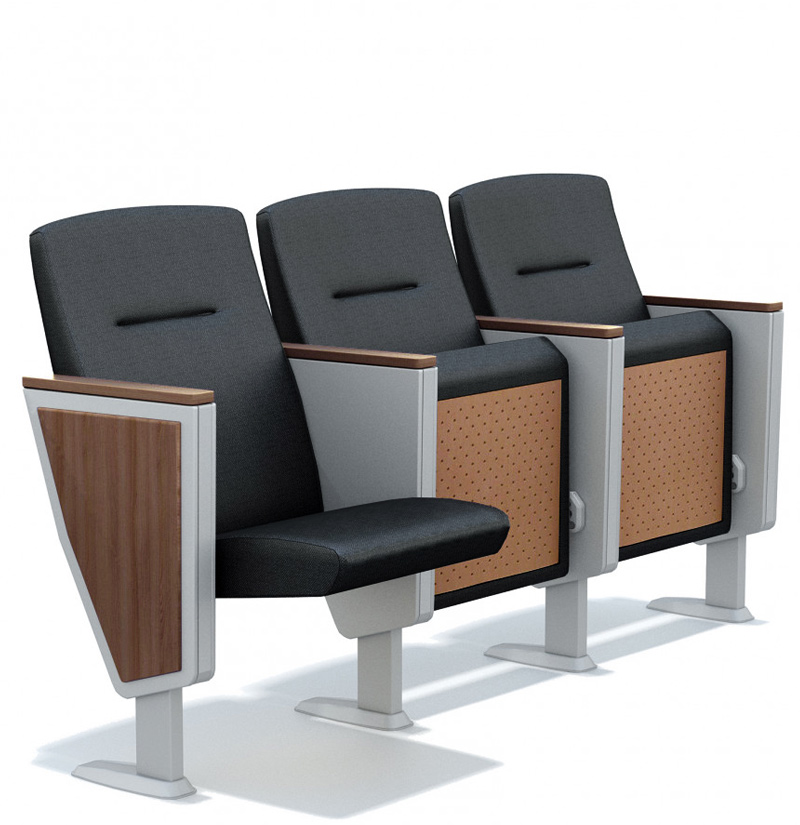

Part #17800-WAC — Wood Arm Cap.


Part #17800-2-MOV — Movable Base for 2 Seats.

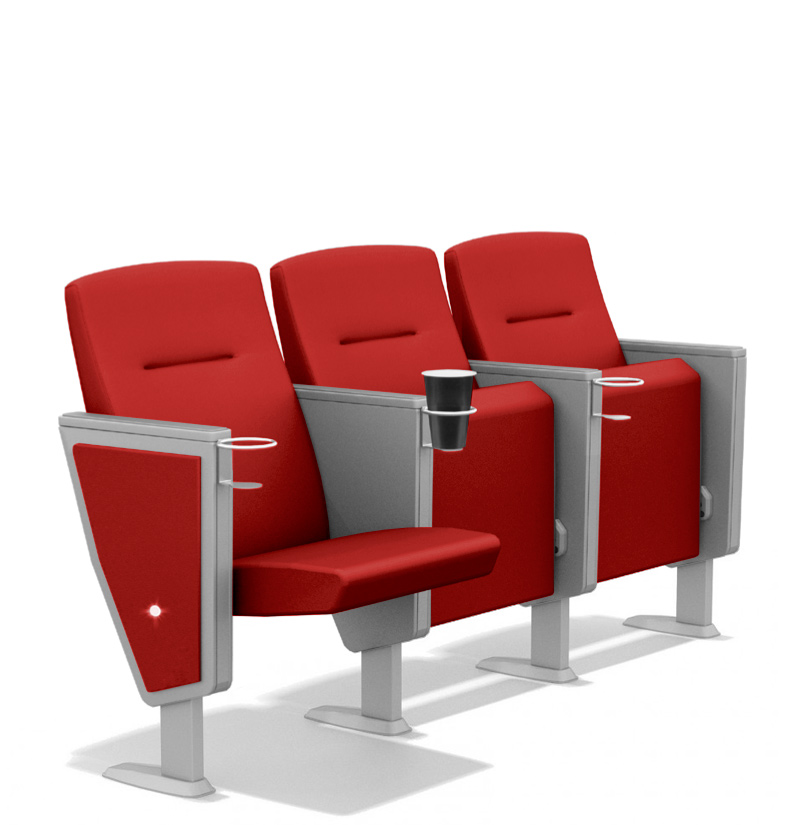

Part #CUP-1-HOLDER — Cup holders.


Part #NUMBER-1-SEAT — Seat numbering.


Part #NUMBER-1-ROW — Row numbering.


Part #POWER-1-MOD — 2 Power Duplex daisy linked together (wire channel included).


Part #POWER -1-USB — 2 Power Duplex and 2 USB daisy linked together (wire channel included).


Part #LIGHT-FS — Aisle Lights (transformer not included).


Modification #17800-SLP — Sloped floor.


Modification #17800-CUR — Curved layout.


Modification #17800-RSR — Riser Mounted Seats.

Downloads

Brochure/Spec Sheet


Price List


Request Green Data


Dimensions

Standard

stylos dimensions

Standard with Writing Tablet

Standard with Writing Tablet

Comfort

Comfort

Comfort with Writing Tablet

Comfort with Writing Tablet

Bariatric

Bariatric

Bariatric with Writing Tablet

Bariatric with Writing Tablet

Airform – Details/Dimension

Details
  • 100% polyester fibre modular panel for heat and sound insulation, 33 mm thick, hot melt “ROUNDED on 1 side” to a thickness of 4 mm on all four sides.
    • Sound absorption coefficient: (UNI EN ISO 354, UNI EN ISO 11654) αw=0.70 (flush installation), αw=0.80 (installation at a distance of 30 cm from ceiling/wall)
    • Density 66 Kg/m3
    • Conductivity: λ=0.0341 W/mk
    • Thermal Resistance: 1.173 mqKW/1
    • Reaction to fire: B s1 d0 (EN 13964)
    • Water vapour resistance factor µ=3.34
    • CE marked, class 1, F1
    • decorated with disperse sublimation dyes according to European OEKO-TEX standard
    • Color Finishes:
      • Red
      • Brown
      • Grey
      • Green
      • Blue
Dimensions
  • Square

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 1.5" (33 mm)
  • Rectangle

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 1.5" (33 mm)

Airgraf – Details/Dimension

Details
  • 100% polyester fibre modular panel for thermal and acoustic insulation, 40 mm thick. Printed on TREVIRA fabric. Decorations are printed at customer’s request. Print resolution: 300dpi.
    • Sound absorption coefficient: (UNI EN ISO 354, UNI EN ISO 11654) αw=0.70 (flush installation), αw=0.80 (installation at a distance of 30 cm from ceiling/wall)
    • Density 50 Kg/m3
    • Conductivity: λ=0.0341 W/mk
    • Thermal resistance: 1.173 mqKW/1
    • Reaction to fire: B s1 d0 (EN 13964)
    • Water vapour resistance factor µ=3.34
    • CE marked, class 1, F1
    • Decorated with disperse sublimation dyes according to European OEKO-TEX standard.
    • Color Finishes:
      • Beige
      • Black
      • Blue
      • Green
      • Orange
      • Pearly
      • Red
      • White
Dimensions
  • Square - Standard

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 1.7" (45 mm)
  • Square - Upon Request

    Height Width Depth
    Overall 39.5" (1000 mm) 95" (2400 mm) 1.7" (45 mm)
  • Rectangle - Standard

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 1.7" (45 mm)
  • Rectangle - Upon Request

    Height Width Depth
    Overall 47" (1200 mm) 95" (2400 mm) 1.7" (45 mm)

Airsquare – Details/Dimensions

Details
Dimensions
  • Square

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 2" (50 mm)

Airtwin – Details/Dimensions

Details
  • 100% polyester fibre modular panel for thermal and acoustic insulation + Trevira fabric, 33mm thick hot melt “ROUNDED on 2 sides” to a thickness of 5 mm on all four sides.
    • Sound absorption coefficient: (UNI EN ISO 354, UNI EN ISO 11654) αw=0.75 (flush installation),suspended
    • Density 66 Kg/m3
    • Conductivity: λ=0.0341 W/mk
    • Thermal Resistance: 1.173 mqKW/1
    • Reaction to fire: B s1 d0 (EN 13964)
    • Water vapour resistance factor µ=3.34
    • CE marked, class 1, F1
    • Decorated with disperse sublimation dyes according to European OEKO-TEX standard.
    • Color Finishes:
      • Blue
      • Brown
      • Blue/Green
      • Green
      • Grey
      • Grey/Anthracite
      • Red
      • Red/Yellow
Dimensions
  • Square

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 1.5" (33 mm)
  • Rectangle

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 1.5" (33 mm)
  • Round

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 1.5" (33 mm)

Concretech – Details/Dimensions

Details
  • 16 mm thick MDF panel lined with 2 mm thick concrete on visible side.
    Upon request, fireproof MDF panels class 1 according to EC Regulation, reaction to fire (B, s2, d0)
    • Types:
      • Mill
      • Peforated Straight
      • Perforated Staggered
      • Smooth
Dimensions
  • Square - Smooth

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Square - Perforated with Parallel Pitch

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Square - Perforated with Staggered Pitch

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Square - Milling

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Rectangle - Smooth

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)
  • Rectangle - Perforated with Parallel Pitch

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)
  • Rectangle - Perforated with Staggered Pitch

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)
  • Rectangle - Milling

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)

Decorvox – Details/Dimensions

Details
  • 16 mm fireproof MDF panel, perforated, hole D 10, 16 mm pitch, coupled with 5mm thick mixed wool felt on the visible side.
    • Composition 80% wool 20% rayon.
    • Density 0.30 gr/cm3,
    • Counterweight 1500 g/m2;
    • Resistance to temperature: roughens at 100°C, decomposition begins at 130°C;
    • AP 171 fireproofing treatment Category 1 (UNI 8456/8457).
    • class 1 (B,s2; d0).
    • Color Finishes:
      • Black
      • Dark Brown
      • Dark Green
      • Dark Grey
      • Dark Red
      • Light Grey
      • Midnight Blue
      • Orange
      • Red
      • Sandy
      • Yellow
Dimensions
  • Square

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.8" (21 mm)
  • Rectangle

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.8" (21 mm)

Easy Air – Details/Dimensions

Details
Dimensions
  • Round

    Base Diameter Structure Height Upright Diameter
    Overall 17.7" (450 mm) 78" (1985 mm) 1" (25 mm)

Listen – Details/Dimensions

Details
    • 16 mm thick MDF panel with melamine, wood, lacquered, flocked or laminated finish.
    • MDF panel density: 760 kg/m3 (EN 323)
    • Formaldehyde: class E1 (EN 120)
    • Finishes:
      • MAF Maple
      • Aluminium
      • Ivory
      • Blank
      • Grey
      • Raw
      • Oak
      • Teak
      • Wenge
      • WAC Maple
      • Birch
      • American Cherry
      • Euro Cherry
      • Beech
      • Larch
      • Walnut
      • Ash
      • Oak
Dimensions
  • Square - Smooth

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Square - Perforated with Parallel Pitch

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Square - Perforated with Staggered Pitch

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Square - Milling

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Rectangle - Smooth

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)
  • Rectangle - Perforated with Parallel Pitch

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)
  • Rectangle - Perforated with Staggered Pitch

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)
  • Rectangle - Milling

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)

Metalia – Details/Dimensions

Details
  • Painted 10/10 sheet panels, 20 mmthick rear polyester fiber pad; it can be integrated with other products(Listen, Concretech, Decovox) by changing panel thickness.
    • Punched with patented system RASTERPUNCH with customized patterns and drawings upon request.
    • Density 40 Kg/m3
Dimensions
  • Square

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.6" (16 mm)
  • Rectangle

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.6" (16 mm)
  • Oversized

    Height Width Depth
    Overall 118" (3000 mm) 39.5" (1000 mm) 0.6" (16 mm)

Petra – Details/Dimenions

Details
  • 16 mm thick MDF panel lined with 2 mm thick stone on visible side. Upon request, fireproof MDF panels class 1 according to EC Regulation, reaction to fire (B, s2, d0)
    • Stone options based on market availability
Dimensions
  • Square - Smooth

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Square - Milling

    Height Width Depth
    Overall 23.5" (600 mm) 23.5" (600 mm) 0.7" (18 mm)
  • Rectangle - Smooth

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)
  • Rectangle - Milling

    Height Width Depth
    Overall 23.5" (600 mm) 47" (1200 mm) 0.7" (18 mm)
↓
